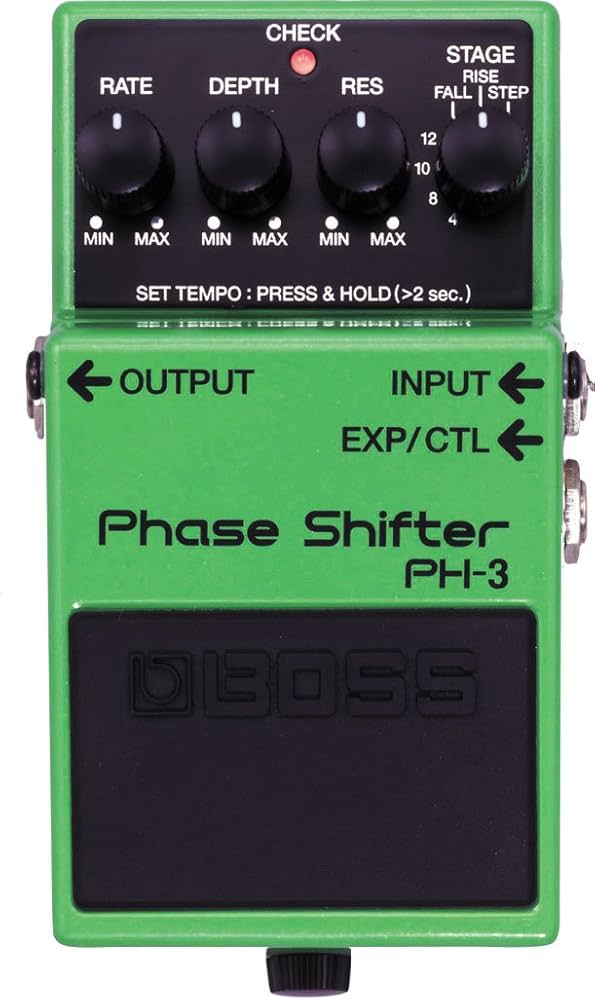

Boss PH-3 Phase Shifter Pedal

£111

2 in stock

free delivery orders over £99

SKU: PH-3 Category: Tag:

Description

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3’s Rate, Filter and Tempo.

Features

  • Compact pedal with versatile vintage and modern BOSS phasing
  • New “Rise” and “Fall” modes create unidirectional phasing
  • Includes classic multi-stage phasers with selectable stages
  • Realtime control of Rate via optional expression pedal
  • Tap tempo sync of phasing effects
  • BOSS five-year warranty

Highlights

“Rise” and “Fall” Effects

In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.

Total Control

Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.

Specifications

Nominal Input Level -20 dBu
Input Impedance 1 M ohms
Nominal Output Level -20 dBu
Output Impedance 1 k ohms
Recommended Load Impedance 10 k ohms or greater
Residual Noise Level -92 dBu (IHF-A, Typ.)
Connectors INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
Power Supply DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw 50 mA (DC 9 V)
Accessories Dry Battery 9 V type (6F22/9 V)
Width 73 mm (2-7/8 inches)
Depth 129 mm (5-1/8 inches)
Height 59 mm (2-3/8 inches)
Weight 420 g (0 lbs. 15 oz.)
