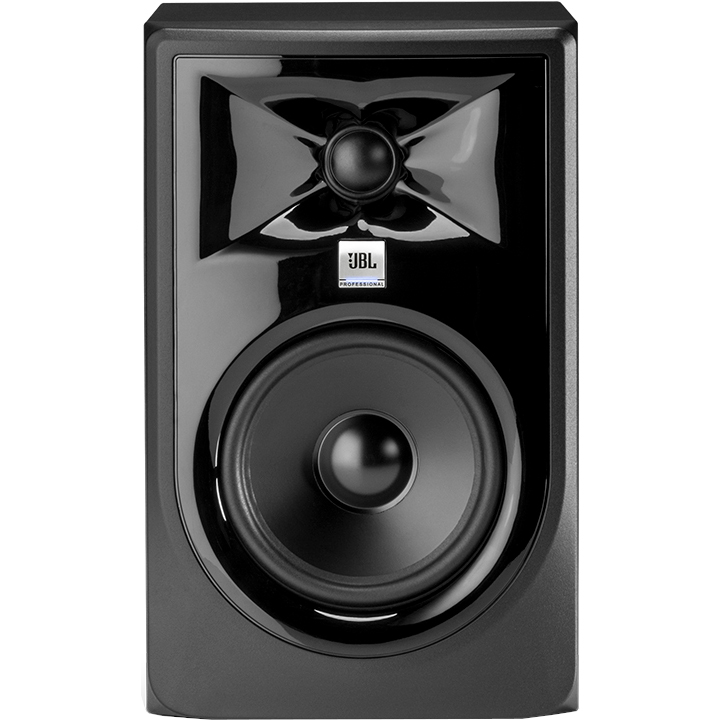

JBL 305P MKII Powered 5 Inch Two-Way Studio Monitor

£139

Out of Stock

SKU: JBL1853 Category:

Description

The next-generation JBL 305P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances themix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Seriesand M2 Master Reference Monitors and sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

Features

  • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
  • Next-generation JBL transducers for optimized transient response and improved linearity
  • Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
  • Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
  • New Boundary EQ settings compensate for low frequency variants introduced by the environment
  • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
  • Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
  • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
  • Strenuous JBL 100-hour full-power test ensures years of reliability
  • Sleek, modern design provides a visual upgrade to any studio

Highlights

YOUR MIX IS ONLY AS GOOD AS YOUR MONITORS

JBL 305P MkII has been equipped with acclaimed 3 Series transducers that now perform even better. Hear deep, accurate and tightly controlled bass, thanks to a long-throw 5″ woofer and the patented JBL Slip Stream™ low-frequency port. Enjoy soaring, immaculately detailed highs, via its woven-composite 1″ Neodymium tweeter. JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low-frequency linearity and reduced harmonic distortion courtesy of an enhanced woofer design. The result is a studio monitor you can trust—with unmatched performance, stunning imaging and neutral frequency response that’s unbeatable in its class.

TAILORED SOUND TO FIT YOUR STUDIO

The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that’s why JBL 305P MkII lets you adjust the response to fit your studio. The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 305P MkII to tailor it to room acoustics or personal tastes.

PATENTED IMAGE CONTROL WAVEGUIDE

Reveal impressive detail, ambience and depth in your mixes with JBL 3 Series’ groundbreaking Image Control Waveguide. Originally developed for JBL’s flagship M2 Master Reference Monitor, this patented innovation ensures an acoustically seamless transition between the low- and high-frequency transducers and provides an immersive soundstage, with precise imaging. Offering a wide sweet spot and neutral frequency response, JBL 305P MkII delivers a crystal clear representation of your mix, revealing subtle details, even when listening off-axis.

BIG SOUND OUT OF THE BOX

JBL 305P MkII is ready for the most demanding production styles right out of the box. With 82 watts of total power, the dual, integrated Class-D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project. From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume— even at peak SPL. Simply plug in, power on, and start creating.

Specifications

LF DRIVER SIZE 203mm (5″)
HF DRIVER SIZE 25mm (1″)
HF DRIVER TYPE Soft dome
CROSSOVER 1725Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT Yes
INPUT SENSITIVITY (-10dBV INPUT) 92dB / 1m
POWER CONFIGURATION Bi-amplified
HF DRIVER POWER AMP 41W, Class-D
LF DRIVER POWER AMP 41W, Class-D
FREQUENCY RESPONSE (±3dB) 49Hz – 20kHz
FREQUENCY RANGE (-10dB) 43Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB) 43Hz
MAXIMUM CONTINUOUS SPL* 94dB
MAXIMUM PEAK SPL** 108dB
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) +6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA <10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
SIGNAL TO NOISE RATIO 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
COVERAGE HORIZONTAL x VERTICAL 120° x 90°
ANALOG INPUT TYPES 1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL -2dB, 0dB, +2dB
BOUNDARY EQ: LF Shelf @ 50Hz -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE 100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE Ported
ENCLOSURE CONSTRUCTION 15mm MDF
ENCLOSURE FINISH Matte black PVC
BAFFLE CONSTRUCTION Injection-moulded structural ABS
CABINET DIMENSIONS (H x W x D***) 298 x 185 x 231mm (11.7″ x 7.3″ x 9.1″)
DISPLAY CARTON (H x W x D) 354 x 244 x 299mm (13.9″ x 9.6″ x 11.8″)
SHIPPING CARTON (H x W x D) 373 x 260 x 315mm (14.7″ x 10.2″ x 12.4″)
NET WEIGHT 4.73 kg (10.43 lbs)
SHIPPING GROSS WEIGHT 5.72 kg (12.61 lbs)
