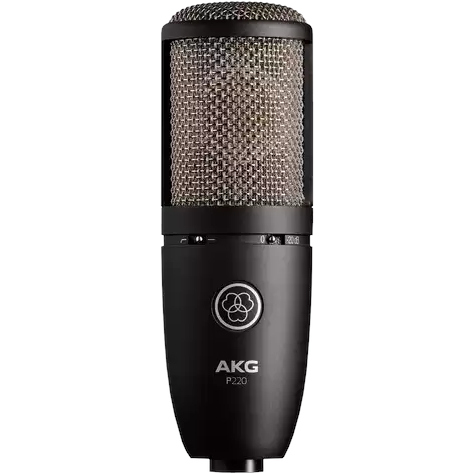

AKG P220 High Performance Large Diaphragm True Condenser Microphone


Out of Stock

SKU: AKG1013 Category:


The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications. The P220 represents the most popular and successful microphone within the Project Studio Line. It comes complete with a spider-type shock mount in an aluminium carrying case.


  • Rugged all-metal body and robust design withstands tough day-to-day use
  • Switchable bass-cut filter eliminates rumble or footfall noise
  • Switchable attenuation pad for high SPL applications up to 155 dB SPL


Polar Pattern Cardioid
Audio frequency bandwidth 20 – 20000 Hz
Equivalent noise level 16 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 78 dB-A
Preattenuation Pad -20 dB
Bass cut filter 300 Hz – 12 dB/octave
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Audio Type Balanced XLR
Connection Type Male
Contacts 3-pin
Voltage 44 to 52 V
Current <= 3 mA
For Vocals Yes
Piano & Strings Yes
Horns & Woodwinds Yes
Length 165 mm
Diameter 54 mm
Net Weight 530 g
